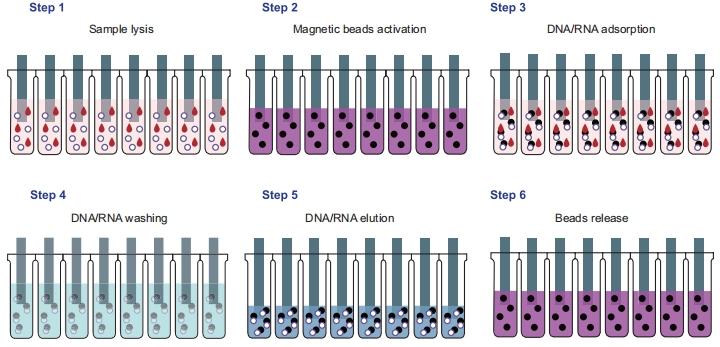

TGuide S96 Automated Nucleic Acid Extractor adopts the latest magnetic rod binding and transfer magnetic beads method. 96-deep well plates and different kinds of magnetic beads extraction reagents are applied to automatically extract and purify nucleic acid from 1-192 blood/cells/tissues/viruses and other samples.

This extractor can be equipped with an 24 flux module which has good adaptability to large-volume samples. It is equipped with TIANGEN pre-packed reagents and can simultaneously extract 1-24 samples. The maximum sample volume handled by the instrument is 5 ml. It is especially suitable for extraction of free nucleic acid in serum and plasma. It has high extraction yield and good purity, and can be used in fields such as tumor detection, NIPT, etc.

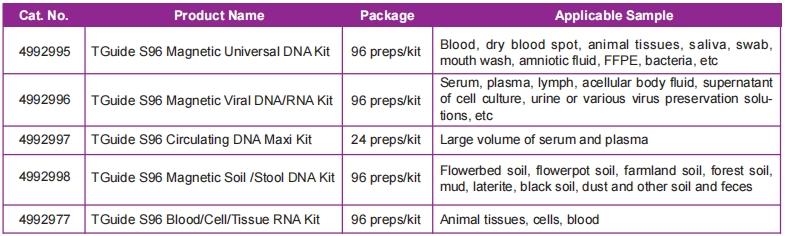

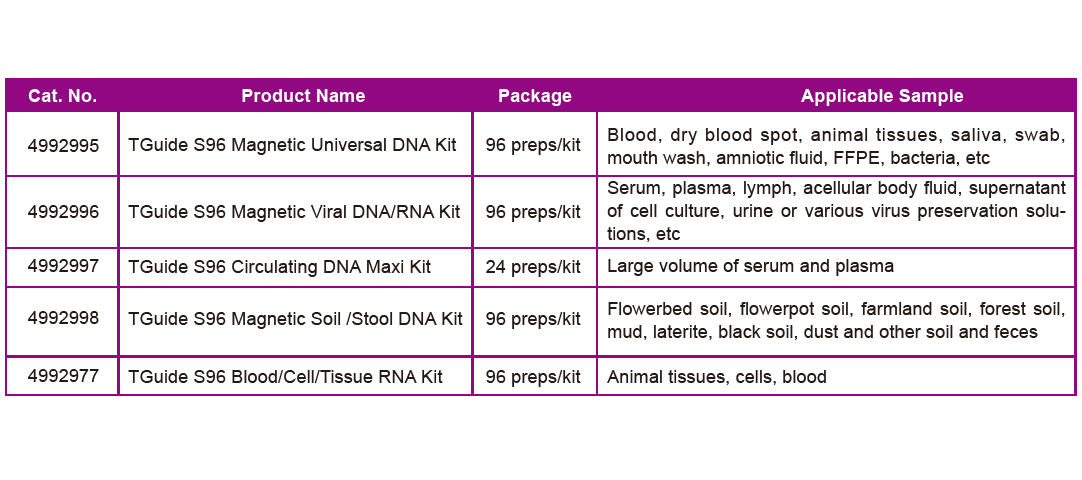

This instrument with TIANGEN different kinds of magnetic beads nucleic acid reagents can quickly complete DNA and RNA extraction of 1-96 samples, covering blood, saliva, tissue, cells, swabs, soil, feces and other sample types. It is widely used in conventional scientific research, genomics, inspection and quarantine, molecular diagnosis, forensics and other fields. This instrument can also be configured with 24-throughput module, which has good adaptability to large volume samples, and with TIANGEN integrated reagents, it can operate 1-24 samples at the same time. The maximum sample volume processed by the instrument is 5ml. It is especially suitable for the extraction of free nucleic acids in serum and plasma with high extraction rate and good purity, which can be used in tumor test, NIPT and other fields.

● Instrument grounding: In order to avoid electric shock, the input power cord of the instrument must be grounded reliably. This instrument uses a three-pin plug, which can only be used with this type of power socket. It is a safety device.

● Power supply: Before connecting the AC power supply, make sure that the voltage of the power supply is consistent with the voltage required by the instrument (allowable deviation of ±10%), and make sure that the rated load of the power socket is not less than the requirements of the instrument.

● Power cord: The instrument should use the supplied power cord. If the power cord is damaged, it must be replaced instead of being repaired. It shall be replaced with a power cord of the same type and specification. Do not put anything on the power cord when the instrument is in use. Do not place the power cord where people move around. Hold the plug when plugging or unplugging the power cord and make sure that the plug is fully inserted into the socket when inserting the plug. Do not pull the power cord forcibly when unplugging the plug.

● Placement of the instrument: The instrument shall be placed in a place with low humidity and less dust and far away from water sources (such as close to pools, water pipes, etc.), and the room shall be well ventilated and free from corrosive gas or strong magnetic field interference. Do not place the instrument in a damp or dusty place.

The openings on this instrument are designed for ventilation and heat dissipation. In order to avoid overheating, these holes for ventilation and heat dissipation must not be blocked or covered. When the instrument is running, the holes for ventilation and heat dissipation in front and back of the instrument and the nearest object shall not be less than 25 cm. In addition, do not use the instrument on a soft surface, otherwise it will affect the ventilation and heat dissipation at the bottom of the instrument.

If the temperature is too high, it will affect the test performance of the instrument or cause malfunction. Do not use the instrument in direct sunlight, and keep away from heaters, stoves and other heat sources. When the instrument is not used for a long time, unplug the power plug and cover the instrument with a soft cloth or plastic bag to prevent dust from entering.

● Under the following circumstances, immediately unplug the instrument from the power socket, and contact the supplier or ask qualified maintenance personnel to handle it:

NOTE: The instrument gets wet due to rain or water.

NOTE: It occurs unusual sound or smell when the instrument is working; The instrument is fallen down or the shell is damaged;

NOTE:The function of the instrument has changed obviously.

● Do not disassemble the instrument without authorization

Operators are not allowed to open the instrument, replace components or perform in-machine debugging without the authorization of the manufacturer. If users need to open the instrument, it must be completed by professional maintenance personnel with the consent of the manufacturer, otherwise the manufacturer will not provide warranty.

● Unpacking acceptance

After the instrument is unpacked, the items in the packing box shall be accepted according to the packing list. In case of damaged or missing items, please contact the supplier. After passing the acceptance, please fill in the relevant contents on the installation information feedback form and give it back to our company for documentation and warranty. After unpacking the instrument, please properly save the packaging materials for later use. Our company will not assume any responsibility for the damage of the instrument due to improper packaging on the way to the maintenance department.

For this instrument, within 12 months from the date of delivery, TIANGEN provides a warranty for malfunction caused by defects in materials and manufacturing. During the warranty period, Tiangen will selectively repair or replace the instruments proved to be defective.

The instrument for maintenance must be sent by the user to the maintenance department designated by Tiangen. Tiangen will charge the maintenance fee appropriately for the maintenance beyond the warranty period.
